Image gallery

Examples of implementation of Trenchip for the marking and identification of underground pipes, with access to the digitized documentation related to the installation:

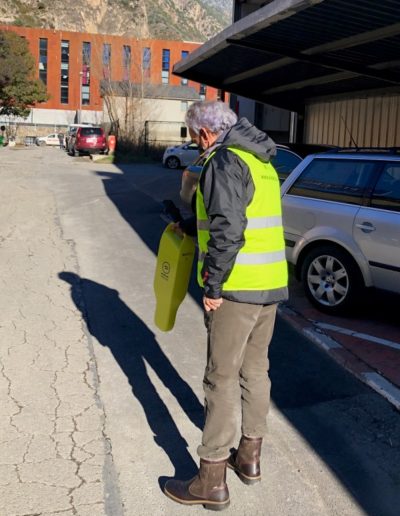

Detection of sensors and retrieval of information associated with the underground installation, with the Trenchip reader device.

Detection of sensors and retrieval of information associated with the underground installation, with the Trenchip reader device.

Consult of the infrastructure detail in the Trenchip mobile application.

Consult of the infrastructure detail in the Trenchip mobile application.

Placement of a Trenchip sensor on a drinking water connection to mark the location of the service connection and the position of a second installation crossing the route of the first.

trenchip-galeria 8_2

Placement of a Trenchip sensor on a drinking water connection to mark the location of the service connection and the position of a second installation crossing the route of the first.

racking the route of an urban subway infrastructure in which Trenchip has been implemented, with the augmented reality function of the mobile app.

Trenchip seguimiento de trazado con RA img1

racking the route of an urban subway infrastructure in which Trenchip has been implemented, with the augmented reality function of the mobile app.

Installation of Trenchip in fiber optic manhole to control the location of the infrastructure and incorporate 3D data and images in the application, which can be consulted remotely.

trenchip-galeria 10 arqueta

Installation of Trenchip in fiber optic manhole to control the location of the infrastructure and incorporate 3D data and images in the application, which can be consulted remotely.

Implementation of Trenchip in new fibre optic installation to guarantee the location and access to infrastructure information in the future. Open trench.

5

Implementation of Trenchip in new fibre optic installation to guarantee the location and access to infrastructure information in the future. Open trench.

Implantació de Trenchip a instal·lació nova de Fibra òptica per garantir la localització i accés a la informació de la infraestructura en el futur. Tancament de la rasa.

4

Implantació de Trenchip a instal·lació nova de Fibra òptica per garantir la localització i accés a la informació de la infraestructura en el futur. Tancament de la rasa.

Placement of a Trenchip sensor in a water pipe trench parallel to a Low Voltage line, guaranteeing the location and information of the installation in the future.

trenchip-galeria 6

Placement of a Trenchip sensor in a water pipe trench parallel to a Low Voltage line, guaranteeing the location and information of the installation in the future.

Tracking the route of an urban subway infrastructure in which Trenchip has been implemented, with the augmented reality function of the mobile app.

Trenchip seguimiento de trazado con RA img2

Tracking the route of an urban subway infrastructure in which Trenchip has been implemented, with the augmented reality function of the mobile app.

Marking of a drinking water network connection with Trenchip sensor.

trenchip-galeria 7 Badia

Marking of a drinking water network connection with Trenchip sensor.

Placement of a Trenchip sensor on a drinking water connection to mark the location of the service connection and the position of a second installation crossing the route of the first. Detail of the open trench.

trenchip-galeria 8_1

Placement of a Trenchip sensor on a drinking water connection to mark the location of the service connection and the position of a second installation crossing the route of the first. Detail of the open trench.

Implementation of Trenchip in a water network layout to guarantee the location and information of the installation in the future.

trenchip-galeria 9_1

Implementation of Trenchip in a water network layout to guarantee the location and information of the installation in the future.

Placement of Trenchip sensor in a drinking water intake to ensure future location and to keep a record of the installation data.

trenchip-galeria 9_2

Placement of Trenchip sensor in a drinking water intake to ensure future location and to keep a record of the installation data.
